+100- Call For Price!
-
Sleeps 5
-
1 Slides
-
Bunk Over CabOutdoor Entertainment
-
25ft Long
-
Arctic Frost, Cloud Nine, Midtown Taupe

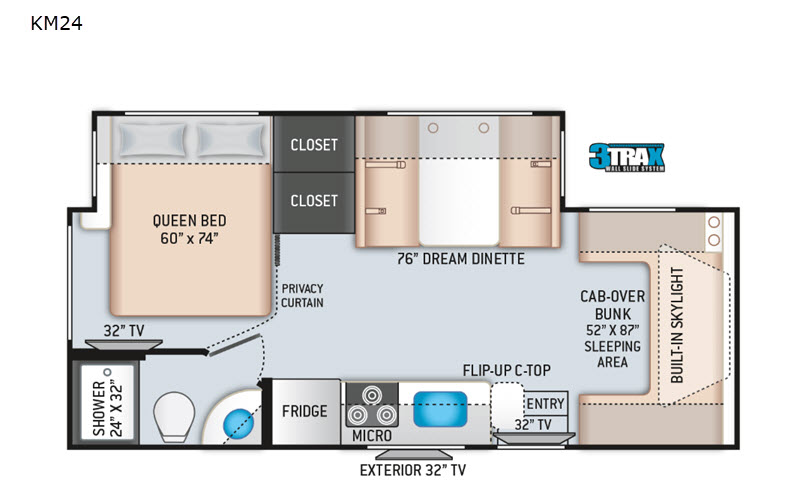

KM24 Floorplan
Specifications
| Sleeps | 5 | Slides | 1 |
| Length | 24 ft 8 in | Ext Width | 7 ft 6 in |
| Ext Height | 12 ft 1 in | Int Height | 7 ft |
| Interior Color | Arctic Frost, Cloud Nine, Midtown Taupe | Exterior Color | Hot Streak, Let It Ride, Black Onyx, Topaz Blue |
| Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
| Fresh Water Capacity | 30 gals | Grey Water Capacity | 38 gals |
| Black Water Capacity | 24.5 gals | Furnace BTU | 30000 btu |
| Generator | Onan RV QG 3600 LP | Fuel Type | Diesel |
| Miles | 13152 | Engine | 3.0L V6 |
| Chassis | Mercedes-Benz Sprinter 3500 | Horsepower | 188 hp |
| Fuel Capacity | 26.4 gals | Wheelbase | 170.3 in |
| Number Of Bunks | 1 | Available Beds | Queen |
| Torque | 325 ft-lb | Refrigerator Type | Double Door Gas/Electric |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | 24" x 32" | Number of Awnings | 1 |
| LP Tank Capacity | 68.2 lbs | Water Heater Type | Tankless |
| AC BTU | 13500 btu | Basement Storage | 48.5 cu. ft. |
| TV Info | LR 32" TV, BR 32" TV, Exterior 32" TV | Awning Info | 15' Electric with LED Lights |
| Gross Combined Weight | 15250 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | 112997 |
Description
Thor Motor Coach Quantum Sprinter Class C diesel motorhome KM24 highlights:
- Full-Wall Slide
- Exterior 32" TV
- 76" Dream Dinette
- Full Bath
- Bunk Over Cab
This Quantum Sprinter Class C diesel motorhome is an excellent choice for your next getaway unit! There is plenty of room for a few extra guests and of course the grandkids! There is a bunk over the cab, a 76" Dream Dinette, and don't forget about the queen bed in the back. There is a 32" TV inside for some entertainment for the kids before bed, and there is a 32" TV outside so that you can watch the big game while you are on vacation enjoying the great outdoors. If you need a little shade on a sunny day, just put down the 15' electric awning!
Built on a Mercedes-Benz chassis, the Quantum Sprinter Class C diesel motorhome by Thor Motor Coach was built with your comfort in mind. Each model includes lighted rotocast storage compartments for all your gear, a power patio awning with integrated LED lights to create an outdoor living space, and a fiberglass front cap with a skylight and power shade. Inside, you'll enjoy residential vinyl flooring, an 84" ceiling height for more standing space, a double-door refrigerator, a convection microwave, and many more features. You'll love the Platinum Package which comes standard and includes a touchscreen dash radio with navigation and back-up monitor, stainless steel wheel liners, solid surface countertops, premium window privacy roller shades, and an outside shower!
Features
Standard Features (2020)
Construction & Exterior
- Mercedes-Benz Sprinter - 3.0L V6 188HP 325 lb-ft Torque
- 5,000-lb. Trailer Hitch
- Electric Stabilizing System
- Welded Tubular Steel Floor
- Welded Tubular Aluminum Roof & Sidewall Cage Construction
- Vacu-Bond Laminated Roof, Walls & Floors w/Block Foam Insulation
- Fiberglass Front Cap with Skylight, Power Shade
- Front Cap w/Exterior Courtesy Light over Cab Doors
- HD-MAX® Exterior with Graphics Package
- Full-Body Paint Package w/Protective Mask (Optional)
- Lighted Rotocast Storage Compartments
- Flush Mount Radius Compartment Doors
- Premium One-piece TPO Roof
- Power Patio Awning with Integrated LED lighting
- Slide out Room Topper Awning(s)
- Roof Ladder
- Exterior Grab Handle
- Electric Entry Step w/ Accent Light Under Step on Separate Switch
- Entry Door with Deadbolt Lock
- Black Framed Windows
Automotive & Cockpit
- Touchscreen Dash Radio w/Navigation
- Rear View Mirror w/ Back-Up System w/ Integrated Camera
- Sirius Tuner and Antenna
- Heated/Remote Exterior Mirrors
- Power Windows & Door Locks
- Cruise Control
- Map Light
- Sun Visors
- Windshield Privacy Curtain
- Drink Holders
- Three-point Seat Belts for the Driver & Passenger
- Leatherette Swivel Captains Chairs with Two Filler Cushions
- Cockpit Carpet Mat
- Keyless Entry System
- Valve Stem Extenders
- Stainless Steel Wheel Liners
- Dash Applique
Interior
- 84” Interior Ceiling Height
- Residential Vinyl Flooring
- Rubber Tread Entry Steps with Lighted Step Well
- Metal Entry Grab Handle
- Smoke, LPG & Carbon Monoxide Detectors
- Fire Extinguisher
- Hard Vinyl Ceiling
- Ceiling Ducted Air Conditioning System
- High-Gloss Glazed Cabinetry with Solid Wood Cabinet Doors, Hardwood Fascia, Hidden Hinges & Nickel Finish Hardware
- Pressed Laminate Countertops
- LED Lighting
- Wall Cubby with Net & USB Charging Port
- Cab-Over Bunk Ladder
- Cab-Over Child Safety Net (Optional)
- Leatherette Theater Seating with Footrests (N/A KM24)
- Leatherette Booth Dinette with (2) storage drawers (N/A KM24)
- Leatherette Dream Dinette® Booth (N/A CR24)
- USB Charging Port at Dinette
- Passenger Seat Belts in Select Areas
- Single Child Safety Tether in Dinette (Optional KM24, N/A CR24)
- Premium Window Privacy Roller Shades w/New Window Treatments
- Full Extension Metal Ball-Bearing Drawer Guides
- 12-volt Attic Fan w/Cover in Cab-Over Bunk (Optional)
Kitchen
- Double Door Gas/Electric RV Refrigerator w/Smoked Acrylic Panel Inserts
- Upgraded Recessed 3-Burner Gas Cooktop with Glass Cover (N/A CR24)
- Two Burner Gas Cooktop, Glass Cover, w/Electric Start (N/A KM24)
- Protective Cover & Task Lighting Above Cooktop
- Convection Microwave Oven
- Solid Surface Kitchen Countertop
- Flip-up Countertop Extension
- Large Single Bowl Stainless Steel Sink w/Single Handle Faucet w/Pull-Down Sprayer (N/A CR24)
- Large Round Single Bowl Stainless Steel Sink w/Single Handle Faucet w/Pull-Down Sprayer (N/A KM24)
- Wood Framed Mirror behind Sink (N/A KM24)
- Kitchen Waste Basket
- 12-volt Ceiling Vent in Kitchen with Under Cabinet Switch
Bedroom & Bathroom
- Queen Size Bed (N/A CR24)
- Full Size Bed (N/A KM24)
- Bedspread and Pillow Shams
- Bedroom USB Power Charging Center for Electronics
- Bedroom 12V Outlet for CPAP Machine
- Power Bath Vent w/Wall Switch
- Foot Flush Toilet
- Stainless Steel Bathroom Sink
- Skylight in Shower
- Decorative Bathroom Border
- Two Robe Hooks inside Bath
- Shower with Curved Anti-Microbial Shower Curtain
- 12-volt Attic Fan with Cover in Bedroom
Entertainment
- 32” TV on Manual Swivel Over Entry Door (N/A CR24)
- 40" Mid-Ship TV in Living Area (N/A KM24)
- HDMI Video Distribution Box
- 32” TV in Bedroom
- Exterior 32” TV on Swivel Bracket with Bluetooth® Sound Bar and Radio
- Cable TV Ready
- HD/DSS Satellite Ready
Electrical & Plumbing
- Onan RV QG 3600 LP Generator
- Winegard ConnecT 2.0 WiFi/4G/TV Antenna
- 30-amp Shoreline Power Cord
- Automatic Shoreline-to-Generator Transfer Switch
- 13,500 BTU Roof Front Air Conditioner
- 15,000 BTU Roof Front Air Conditioner (Optional)
- Battery Disconnect Switch
- Second Auxiliary House Battery
- Solar Prep (Includes Solar Controller)
- Tankless Water Heater
- Outside Shower
- 360 Siphon RV Holding Tank Vent Cap
- 1” Fresh Water Tank Drain
- Exterior LP Connection
- Holding Tanks with Heat Pads
- Black Tank Flush System
- Systems Control Center
Platinum Package
- Touchscreen Dash Radio w/Navigation and Back-Up Monitor
- Stainless Steel Wheel Liners
- Solid Surface Kitchen Countertop
- Premium Window Privacy Roller Shades
- Outside Shower
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
