+63- Sale Price: $18,995
-
Sleeps 7
-
1 Slides
-
BunkhouseOutdoor Kitchen
-
33ft Long
-
6,850 lbs
-
Almond, Espresso, Kona

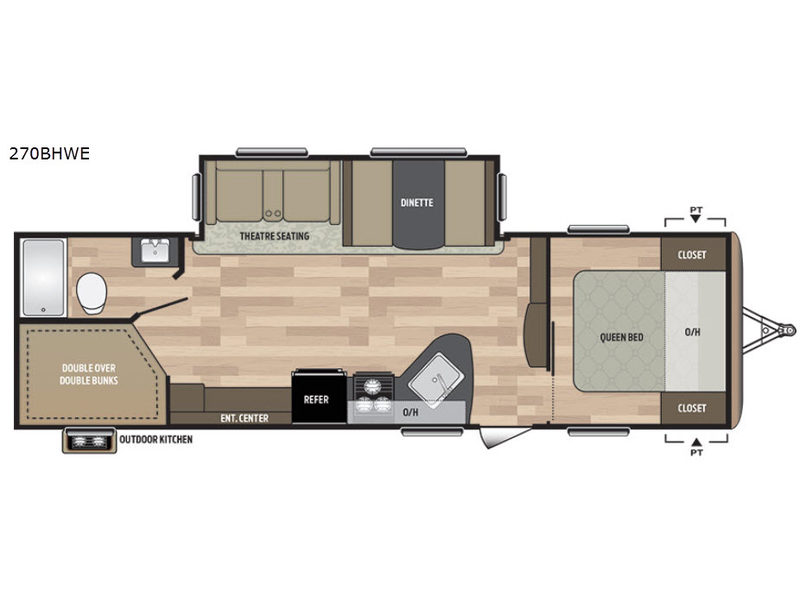

270BHWE Floorplan
Specifications
| Sleeps | 7 | Slides | 1 |
| Length | 32 ft 11 in | Ext Width | 8 ft |
| Ext Height | 11 ft 3 in | Interior Color | Almond, Espresso, Kona |
| Hitch Weight | 810 lbs | Dry Weight | 6850 lbs |
| Cargo Capacity | 2760 lbs | Fresh Water Capacity | 60 gals |
| Grey Water Capacity | 78 gals | Black Water Capacity | 38 gals |
| Tire Size | ST225/75R15D | Number Of Bunks | 2 |
| Available Beds | Queen | Refrigerator Type | 2 door |
| Refrigerator Size | 6.2 cu ft | Cooktop Burners | 3 |
| Number of Awnings | 1 | LP Tank Capacity | 30 |
| Water Heater Capacity | 6 gal | Water Heater Type | Gas/Electric DSI |
| AC BTU | 13500 btu | Awning Info | electric |
| Number of LP Tanks | 2 | Shower Type | Tub/Shower Combo |
| VIN | 101673 |
Description
This Springdale makes camping with family and friends easy and enjoyable. Model 270BHWE offers a set of double size bunk beds, a large slide out for added interior space, a rear corner bath layout, and an outdoor kitchen, plus more!
Step inside and notice the sliding door to the front bedroom which features a queen size bed with closets on either side. There is an entry bench and coat hooks just outside the bedroom door along the interior wall, plus floor to ceiling storage as well.
Straight ahead through the main entry you will enjoy plenty of seating within the large road side slide including a booth dinette for meals, plus theater seating for two with cup holders for conversation or movie watching. Opposite the theater seats you will find a nice entertainment center to enjoy with storage both above and below. There is also a floor to ceiling pantry cupboard between the entertainment center and rear set of double size bunk beds.
To the left of the entrance you will find a complete kitchen with angled counter including a large sink, a three burner range, and a refrigerator. You will also find plenty of space to tuck things away in the overhead cabinets and lower cupboards and drawers. This is perfect for your daily dishes and other kitchen items.
In the rear left corner you will enjoy sleeping space for four adults or children with the set of double size bunk beds. The interior corner has been angled to provide more space for moving around. Right next door in the rear right corner is a full bath including a tub/shower, toilet, and vanity with sink. This is the perfect location to the bunks especially for little ones.
On the outside enjoy being able to easily cook for your family using the outdoor kitchen. This includes a two burner cook-top, storage, and so much more!
Features
Standard Features (2017)
Exterior Features (TT East)
- Diamond Plate
- XL Entry Assist Handle
- Powder Coated I-Beam Frame
- Easy Ultralube Axles
- Dual Battery Rack
- 2 Exterior Speakers
- Oversized Pass Thru Storage w/ Light (Select Models)
- Cambered chassis
- Exterior Shower
- E-Z Open Entry Step
- Adjustable Power Awning
- Outside 110 receptacle
- Arctic Package (Select Models)
- Spread Axle (Models w/Slides)
- Full Length Outriggers on Frame
- Two 30 lb. LP Bottles
- King HD Antenna
- Hurricane Straps Reinforced Structure
- LionsHead Nitro Filled Tires
- 96" Exterior width
- Black Tank Flush (Select Models)
- 50 Amp Service w/Detachable Cord (Select Models)
Interior Features (TT East)
- Large Medicine Cabinet
- Full Strutted Storage under Master Bed
- Residential Microwave
- 7 Cu. Ft. Refrigerator
- Ball Bearing Drawer Guides
- High Rise Kitchen Faucet
- 18" Oven w/3 Burner Cooktop
- 12 Volt 55 Amp Converter
- Forced Air DSI 30K BTU Furnace w/Thermostat (Ducted most models)
- Skylight Over Tub/Shower
- 82" Vaulted Ceiling
- 2x3 Floor Construction 12" OC w/5/8th Decking
- 4 1/2” Crowned Roof
- R-7 Insulation-Floor, Roof, Walls
- Pleated Night Shades in Living Area
- Nightstand w/Drawer in Bedroom
- AM/FM Bluetooth CD/DVD Ent. System
- Monitor Panel
- Residential Refrigerator (38BH, 38FL, 38FQ only)
- Reversible Dinette Cushions
- High Impact Acrylic Sink
- "Do More Dinette" Table (Select Models)
- 13,500 BTU Air Conditioner
- 6 Gal. Gas/Electric DSI Water Heater
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 16" on Center Raised Roof Truss System
- 16" on Center Side Walls
Exterior Features (Fifth Wheels)
- Laminated Fiberglass Sidewalls
- XL Entry Assist Handle
- Powder Coated I-Beam Frame
- Easy Ultralube Axles
- Dual Battery Rack
- 2 Exterior Speakers
- Oversized Pass Thru Storage
- Two Heavy Duty Stabilizer Jacks
- Cambered chassis
- Marine Grade Foot Flush Toilet
- E-Z Open Entry Step
- Electric Adjustable Front Landing Gear
- Adjustable Power Awning
- Outside 110 receptacle
- Arctic Package
- Spread Axle (Models w/Slides)
- Full Length Outriggers on Frame
- Two 30 lb. LP Bottles
- King HD Antenna
- Hurricane Straps Reinforced Structure
- LionsHead Nitro Filled Tires
- 96" Exterior width
- 50 Amp Service w/Detachable Cord (Select Models)
- Interior Features (Fifth Wheels)
- Large Medicine Cabinet
- Full Strutted Storage under Master Bed
- Nightstand
- Residential Microwave
- 7 Cu. Ft. Refrigerator
- Ball Bearing Drawer Guides
- High Rise Kitchen Faucet
- 18" Oven w/3 Burner Cooktop
- 12 Volt 55 Amp Converter
- Forced Air DSI 30K BTU Furnace w/Thermostat (Ducted most models)
- Skylight Over Tub/Shower
- 2x3 Floor Construction 12" OC w/5/8th Decking
- 4 1/2” Crowned Roof
- R-7 Insulation-Floor, Roof, Walls
- Pleated Night Shades in Living Area
- AM/FM Bluetooth Soundbar Ent. System
- Monitor Panel
- Reversible Dinette Cushions
- High Impact Acrylic Sink
- "Do More Dinette" Table (Table & Chair Option Available)
- 13,500 BTU Air Conditioner
- 6 Gal. Gas/Electric DSI Water Heater
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 16" on Center Raised Roof Truss System
- 16" on Center Side Walls
Construction Features (TT West)
- 2 - 30# LP Bottles w/auto change over
- Manual Stabilizer Jacks (4)* (non SSR floorplans)
- Power Stabilizer Jacks (SSR Models Only)
- Spread Axle (models w/Slides)
- E-Z Open Entry Step
- Radial Tires
- 13.5K Ducted A/C (N/A 179, 189, 201, 202, 212)
- Tub Surround
- 2x3 Floor Construction 12” OC with 5/8ths Decking
- 60 Gallon Fresh Water Tank
- One Piece Extruded I-Beam
- Pre-Drilled & Screwed Residential Cabinetry
- Solar Prep
- Cambered Chassis
- Strutted Entry Door
- 16” on Center Side Walls
- 16” on Center Raised Roof Truss System
- R-7 Insulation-Roof, Walls
- Fully Enclosed & Heated Underbelly (Models w/Slides)
- Diamond Plate
- Tinted Safety Glass
- Roof Ladder (SSR Floorplans)
- Dynaspan Decking w/25 Year Warranty
- R-20 Floor (Arctic Package Only)
- Easy Ultralube Axles
- Dual Battery Rack
- LED Light in Pass Thru
- Backed for Ladder (N/A 220, 240)
Entertainment Features (TT West)
- 2 Exterior Speakers
- 2 Interior Speakers
- AM/FM/CD/DVD Bluetooth MP3 Player
- Cable and Satellite Prep
- Exterior TV Bracket (SSR FPs)
Kitchen Features (TT West)
- High Impact Acrylic Sink
- Steel Ball Bearing Drawer Guides
- Residential Lighting in Slide
- Spice Rack below sink
- 22” Oven with 3 Burner Cooktop
- 6.2 cu. ft. 110V/LP Fridge
- Microwave
- Do More Dinette Table (Except 179, 189, 220, 260)
- Vented Range Hood w/Light
- Sink Cover
- Stainless Steel appliances
- Outside Shower
- Fabric Pleated Night Shades in Living Area
Bed Bath & More (TT West)
- Skylight Over Tub/Shower
- Forced Air DSI Furnace w/Thermostat
- 6 Gal. Gas/Electric DSI Water Heater
- 55 amp Converter
- Jack Knife Sofa Bed (N/A 179, 202, 212, 258)
- Tri-Fold Sleeper Sofa (SSR Models)
- RG6 Cable and Satellite Wiring
- Fully Strutted Storage Under Master Bed
- Reversible Dinette Cushions
- Laundry Chute
- Water Heater Bypass
- Porcelain Foot Flush Toilet
- Adjustable Power Awning w/LED Lights
- XL Entry Assist Handle
- Outside TV Hookup (N/A 225)
- Black Tank Flush
- Large Medicine Cabinet
- Monitor Panel
- Flex Pex Tubing with 10 Year Warranty
- LED Overhead Lighting
Safety
- Safety chains
- Electric brakes
- L.P. gas detector
- Fire extinguisher
- Tinted safety glass
- Emergency brake-away switch
- Carbon monoxide detector
- Smoke detector
- GFI electrical outlets
Options
TT (East)
- Aluminum Wheels
- Spare Tire and Carrier
- Tri-Fold Sleeper Sofa
- LED TV w/ Telescopic Arm & Bracket
- Freestanding Dinette
- 15,000 BTU A/C
- Fifth Wheel
- Aluminum Wheels
- Spare Tire and Carrier
- Tri-Fold Sleeper Sofa
- LED TV w/ Telescopic Arm & Bracket
- Freestanding Dinette
- 15,000 BTU Air Conditioner
TT (West)
- Power Tongue Jack
- Aluminum Rims
- LED Television
- 15K BTU A/C
- Spare Tire
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
