Sleeps 4
-
3 Slides
-
Kitchen IslandRear Kitchen
-
38ft Long
-
9,455 lbs
-
Bailey

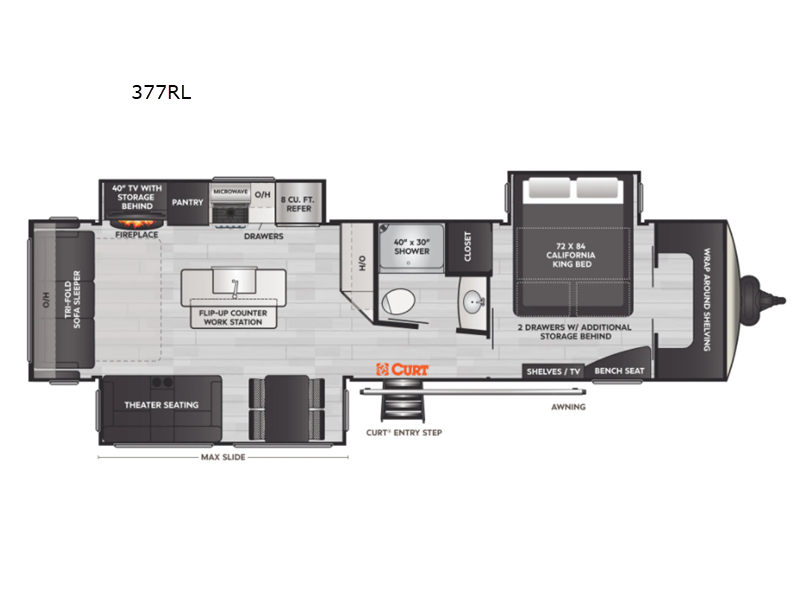

377RL Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 37 ft 7 in | Ext Height | 11 ft 6 in |
Interior Color | Bailey | Hitch Weight | 1235 lbs |
Dry Weight | 9455 lbs | Cargo Capacity | 1975 lbs |
Fresh Water Capacity | 66 gals | Grey Water Capacity | 78 gals |
Black Water Capacity | 39 gals | Tire Size | ST225/75R15E |
Furnace BTU | 35000 btu | Available Beds | California King |
Refrigerator Type | Gas/Electric | Refrigerator Size | 8 cu ft |
Cooktop Burners | 3 | Shower Size | 40" x 30" |
Number of Awnings | 1 | LP Tank Capacity | 30 lbs |
Water Heater Capacity | 12 gal | Water Heater Type | Gas/Electric DSI with Quick Recovery |
AC BTU | 15000 btu | TV Info | LR 40" TV, BR TV |
Awning Info | Power with LED Light Strip | Axle Count | 2 |
Number of LP Tanks | 2 | Shower Type | Standard |
Electrical Service | 50 amp | VIN | 551147 |
Description
The following is a list of Additional Options besides the Standard Features come with the unit are-
• 2022 ARCADIA 377RL
•
• DÉCOR – ARCADIA 2022 – BAILEY
• HARDCORE CONSTRUCTION PACKAGE
• PERFORMANCE PACKAGE
• SEASONAL CAMPING PACKAGE
• SOLAR FLEX 200
• REFRIGERATOR – RV – 8 CF
• RVIA SEAL – GO CAMPING
Features
Standard Features (2022)
***PLEASE NOTE: Features and Options separated by type below
-------------------------------------------
FIFTH WHEELS
Exterior
- Revolutionary NGC2™ Next Generation Crawlspace Chassis
- Heated and enclosed water supply lines in Crawlspace
- SpaceSaver upper deck chassis design
- Rhino pin box chassis design
- Ground Control™ 3.0 auto-leveling system
- Electric front tongue jack with LED light
- Curt ARV upgraded hitch pin
- Curt HD axles w/reinforced axle wall tube
- Curt HD axle bearing pack w/SuperLube
- Curd HD forward self-adjusting brake assembly
- Curt HD springs and HD axle attachment brackets
- Curt rubberized equalization suspension system
- Curt greaseable suspension "wet" bolts w/bronze bushings
- Curt HD 1/2" axle links
- Curt SolidStep with extra-wide top step
- 16" aluminum wheels
- Fully laminated, aluminum framed, one-piece fiberglass sidewalls
- Automotive grade, high glass fiberglass exterior
- Aerodynamic high gloss fiberglass front cap
- MaxTurn technology front cap design for improved turning radius
- Trunk pass-through storage w/88 cu. ft. of clutter-free capacity
- Tie-down rings in pass-through storage
- (2) XL pass-through baggage doors
- XL safety glass windows w/80% tint
- Extra-wide 30" entrance door
- Upgraded, folding entrance-assist handle
- Power awning w/light strip
- Intelligently designed, stand-along convenience center
- Battery disconnect
- Black tank flush
- Power water fill connection
- Easy winterization connection
- Rear observation camera prep
- 5" pre-engineered roof trusses on 16" centers
- 3/8" walk-on roof decking
- 1-piece AlphPly TPO membrane (lifetime limited warranty)
- Winegard AIR 360 amplified, omni-directional antenna
- Roof-mounted satellite connectivity
- Dual attic vents
- Door-side, quick-connect external spray port
- Solar Flex 200 Solar panel, charge controllers and inverted outlets
- Solar Flex 400 (Optional)
- Solar Flex 600 (Optional)
Interior
- Designer vinyl flooring throughout
- Residential theatre seating w/heat and massage (Select Models)
- Tufted EZ-sit foam XL tri-fold sofas (Select Models)
- USB charging stations at theatre seating
- HD Flat screen TV
- Satellite and cable prep on all TV's
- Bluetooth stereo and DVD surround media player w/AM/FM
- Flush-floor main deck slides including galley slide
- Residential "Roman" shades w/black out backing
- Fireplace w/remote and 5,000 BTU heating element
- LED Lighting throughout
Keystone Exclusives
- Color-coded unified wiring standard
- 4G LTE and Wi-Fi prep
- BLADE® Tuf-Lok™ thermoplastic duct joiners
- KeyTV™ multisource signal controller
- In-floor heating ducts
- Tru-fit™ slide construction
- Hyper Deck™ flooring
Kitchen Features
- Free-standing dinette table w/(4) residential chairs (most models)
- Deluxe solid-surface counterops
- Stainless steel "farmhouse" sink w/sink cover
- High-rise, pull-down single lever faucet
- Custom cabinetry featuring solid wood, painted cabinet doors
- Residential adjustable hidden hinges on cabinet doors
- Oversized drawers w/residential ball-bearing drawer guides
- Flip-up, butcher block island work station w/USB connections
- Easy-clean residential inspired backsplash
- Wine rack above microwave
- Pull-out spice rack (select models)
Bathroom
- XL linen cabinet (select models)
- One-piece countertop w/ large, recessed sink bowl
- Large shower w/sliding glass doors
- 48" fiberglass shower w/sliding glass doors (bed slide models)
- Porcelain foot-flush toilet
- Large skylight
- 12V exhaust fan
Bedroom
- Designer vinyl flooring throughout
- Stationary bed base for improved storage and durability
- 60" x 80" queen size bed (non-bed slide models)
- 72" x 84" California king bed (bed slide models)
- Upgraded Serta memory foam mattress
- Stylish and modern headboard design
- (2) XL storage drawers under the bed
- (2) LED overhead reading lights
- (2) bedside 110-volt outlets
- Walk-in closet w/additional storage drawers (bed slide models)
- W/D prep for stackable applications (bed slide models)
- Bedroom TV and satellite prep
Appliances & Utilities
- XL 12" gas/electric refrigerator
- 30" OTR residential microwave
- Residentially-styled 21" gas range/oven
- Coleman® 15,000 BTU A/C
- 12 gallon gas/electric water heater w/ "quick recovery"
- Direct Spark Ignition (DSI) on water heater
- 50 amp electrical service
- (2) 30 lb. propane bottles w/ auto change-over
- 66 gallons of total fresh water capacity (non-bed slide models)
- 107 gallons of total fresh water capacity (bed slide models)
- Waste tanks: 88 gallons and 49 gallons black
- Fully enclosed, insulated and heated holding tanks
- 12-volt heat pads on all holding tanks
- Fully enclosed and insulated remote dump valves
- 12-volt heat pads on all chassis holding tanks
- 35,000 BTU high output furnace
- 12-volt, solar-friendly refrigerator (Optional)
- 2nd 13,500 BTU A/C (Optional)
Weather Protection
- Peak Seasonal Camping Package
Safety
- Breakaway switch
- GFI receptacles
- Carbon monoxide detector
- Smoke detector
- Propane gas leak detector
- Fire extinguisher
-------------------------------------------------
TRAVEL TRAILERS
Exterior
- Revolutionary NGC2™ Next Generation Crawlspace Chassis
- Heated and enclosed water supply lines in Crawlspace
- Ground Control™ 3.0 auto-leveling system
- Electric front tongue jack with LED light
- Curt HD axles w/reinforced axle wall tube
- Curt HD axle bearing pack w/SuperLube
- Curd HD forward self-adjusting brake assembly
- Curt HD springs and HD axle attachment brackets
- Curt rubberized equalization suspension system
- Curt greaseable suspension "wet" bolts w/bronze bushings
- Curt HD 1/2" axle links
- Curt SolidStep with extra-wide top step
- 15" aluminum wheels
- Fully laminated, aluminum framed, one-piece fiberglass sidewalls
- Aerodynamic high gloss fiberglass front cap
- XL safety glass windows w/80% tint
- Extra-wide 30" entrance door
- Upgraded, folding entrance-assist handle
- Power awning w/light strip
- Intelligently designed, stand-along convenience center
- Battery disconnect
- Black tank flush
- Power water fill connection
- Easy winterization connection
- Rear observation camera prep
- 5" pre-engineered roof trusses on 16" centers
- 3/8" walk-on roof decking
- 1-piece AlphPly TPO membrane (lifetime limited warranty)
- Winegard AIR 360 amplified, omni-directional antenna
- Roof-mounted satellite connectivity
- Dual attic vents
- Door-side, quick-connect external spray port
- Solar Flex 200 Solar panel, charge controllers and inverted outlets
- Solar Flex 400 (Optional)
- Solar Flex 600 (Optional)
Interior
- Designer vinyl flooring throughout
- Residential theatre seating w/heat and massage (Select Models)
- Tufted EZ-sit foam XL tri-fold sofas (Select Models)
- USB charging stations at theatre seating
- HD Flat screen TV
- Satellite and cable prep on all TV's
- Bluetooth stereo and DVD surround media player w/AM/FM
- Flush-floor main deck slides including galley slide
- Residential "Roman" shades w/black out backing
- Fireplace w/remote and 5,000 BTU heating element
- LED Lighting throughout
Keystone Exclusives
- Color-coded unified wiring standard
- 4G LTE and Wi-Fi prep
- BLADE® Tuf-Lok™ thermoplastic duct joiners
- KeyTV™ multisource signal controller
- In-floor heating ducts
- Tru-fit™ slide construction
- Hyper Deck™ flooring
Kitchen Features
- Free-standing dinette table w/(4) residential chairs (most models)
- Stainless steel "farmhouse" sink w/sink cover
- High-rise, pull-down single lever faucet
- Custom cabinetry featuring solid wood, painted cabinet doors
- Residential adjustable hidden hinges on cabinet doors
- Oversized drawers w/residential ball-bearing drawer guides
- Flip-up, butcher block island work station w/USB connections
- Easy-clean residential inspired backsplash
- Wine rack above microwave
- Pull-out spice rack (select models)
Bathroom
- Xl linen cabinet (select models)
- One-piece countertop w/ large, recessed sink bowl
- Large shower w/sliding glass doors
- Porcelain foot-flush toilet
- Large skylight
- 12V exhaust fan
Bedroom
- Designer vinyl flooring throughout
- Stationary bed base for improved storage and durability
- 60" x 80" queen size bed (non-bed slide models)
- 72" x 84" California king bed (bed slide models)
- Upgraded Serta memory foam mattress
- Stylish and modern headboard design
- (2) XL storage drawers under the bed
- (2) LED overhead reading lights
- (2) bedside 110-volt outlets
- Bedroom TV and satellite prep
Appliances & Utilities
- 8' gas/electric RV refrigerator
- 30" OTR residential microwave
- Residentially-styled 21" gas range/oven
- Coleman® 15,000 BTU A/C
- 12 gallon gas/electric water heater w/ "quick recovery"
- Direct Spark Ignition (DSI) on water heater
- 50 amp electrical service
- (2) 30 lb. propane bottles w/ auto change-over
- 66 gallons of total fresh water capacity (non-bed slide models)
- Waste tanks: 78 gallons and 39 gallons black
- Fully enclosed, insulated and heated holding tanks
- 12-volt heat pads on all holding tanks
- Fully enclosed and insulated remote dump valves
- 12-volt heat pads on all chassis holding tanks
- 35,000 BTU high output furnace
- 12-volt, solar-friendly refrigerator (Optional)
- 2nd 13,500 BTU A/C (Optional)
Weather Protection
- Peak Seasonal Camping Package
Safety
- Breakaway switch
- GFI receptacles
- Carbon monoxide detector
- Smoke detector
- Propane gas leak detector
- Fire extinguisher
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
